| Part Number | Dimension (mm) | ||
| Dc1 | D | T1 | |
| FG501703 | 17.8 | 30.2 | 2.81 |
| FG501803A | 18.8 | 32.5 | 2.794 |
| FG501804A | 18.58 | 29.7 | 2.794 |
| FG502004 | 20.08 | 35 | 2.81 |
| FG502009B | 20.7 | 33.9 | 2.81 |
| FG502203 | 22.1 | 37.55 | 2.794 |
| FG502205 | 22.5 | 37.5 | 2.794 |
| FG502305A | 23 | 44 | 3.6 |
| FG502307 | 23.2 | 35.4 | 2.81 |
| FG502407A | 24.2 | 48 | 4.1 |
| FG502601 | 26.5 | 42.6 | 2.81 |
| FG502605C | 27.5 | 46.4 | 3.81 |
| FG502609 | 26 | 38.7 | 2.1 |
| FG502610 | 26.97 | 43 | 2.81 |
| FG502702 | 27.5 | 44.2 | 2.81 |
| FG502705B | 27.5 | 40 | 2.3 |
| FG502801 | 28 | 52 | 2.81 |
| FG502807 | 28.6 | 41.8 | 2.81 |
| FG502808 | 28.8 | 50.4 | 3.43 |
| FG502809 | 28.1 | 45 | 2.81 |
| FG502909 | 29 | 47 | 2.8 |
| FG502913 | 29.78 | 42 | 2.81 |
| FG503006 | 30 | 47 | 2.824 |
| FG503012 | 30 | 47 | 3.3 |
| FG503117 | 31 | 53.1 | 4.81 |
| FG503206 | 32.5 | 46.9 | 2.81 |
| FG503209 | 32 | 47 | 2.81 |
| FG503214 | 32.5 | 46 | 2.794 |
| FG503218 | 32.4 | 54.2 | 3.5 |
| FG503221 | 32.4 | 56.48 | 3.31 |
| FG503301A | 33.5 | 47.8 | 2.794 |
| FG503315 | 33.3 | 46.5 | 2.81 |
| FG503502 | 35 | 53 | 2.824 |
| FG503503A | 35 | 53.75 | 2.794 |
| FG503516 | 35.1 | 50 | 2.8 |
| FG503517 | 35 | 48.7 | 3.31 |
| FG503518 | 35.8 | 49.2 | 2.81 |
| FG503607 | 37.4 | 56.1 | 2.81 |
| FG503708A | 37 | 57.7 | 4.31 |
| FG503709 | 37.7 | 56.3 | 3.31 |
| FG503806A | 42 | 61.88 | 3.81 |
| FG503806C | 42 | 61.88 | 3.81 |
| FG503814E | 38.5 | 53.9 | 3.31 |
| FG503818 | 38.45 | 57 | 4.31 |
| FG503820 | 42 | 62.05 | 3.31 |
| FG503912 | 39.2 | 52.6 | 2.81 |
| FG504002 | 40 | 60 | 3 |
| FG504101 | 41 | 58 | 2.81 |
| FG504116 | 41.55 | 54 | 2.6 |
| FG504211 | 42.7 | 59.2 | 4 |
| FG504220 | 42.35 | 62.6 | 4.5 |
| FG504221 | 50 | 65.97 | 2.81 |
| FG504302 | 43 | 59.5 | 3.43 |
| FG504306 | 43.7 | 61.3 | 4.31 |
| FG504403A | 48.4 | 68.48 | 3.81 |
| FG504403B | 48.4 | 68.48 | 3.81 |
| FG504406 | 48.4 | 72.48 | 3.81 |
| FG504406A | 48.4 | 72.48 | 3.81 |
| FG504501 | 45 | 64 | 2.8 |
| FG504506 | 45.4 | 58.9 | 2.1 |
| FG504604A | 46.7 | 66.4 | 3.81 |
| FG504704 | 47.1 | 65.2 | 3.31 |
| FG504705 | 47 | 61.9 | 3.31 |
| FG504707 | 47.5 | 65.9 | 3.81 |
| FG504806-1 | 48.4 | 62.5 | 3.2 |
| FG504806-2 | 48 | 62.5 | 3.4 |
| FG504806-3 | 48 | 62.5 | 3.6 |
| FG504806-4 | 48 | 62.5 | 3.8 |
| FG504806-5 | 48 | 62.5 | 4 |
| FG504806-6 | 48 | 62.5 | 4.2 |
| FG504902 | 49.5 | 70.11 | 3 |
| FG504905 | 49.7 | 64.7 | 2.794 |
| FG505004 | 50 | 70 | 2.81 |
| FG505007A | 50 | 65.97 | 2.81 |
| FG505008 | 50 | 65 | 2.794 |
| FG505009 | 50 | 70 | 2.81 |
| FG505009A | 50 | 70 | 2.81 |
| FG505106 | 51.75 | 73 | 5 |
| FG505203 | 52 | 72.1 | 2.81 |
| FG505307 | 53 | 78.2 | 3.31 |
| FG505506 | 55.35 | 79 | 3.81 |
| FG505507 | 55 | 77.15 | 4 |
| FG505507A | 55 | 77.15 | 4 |
| FG505508 | 55.7 | 76.4 | 2.81 |
| FG505602 | 56.4 | 78 | 4.31 |
| FG505603A | 56 | 79 | 4 |
| FG505703 | 57 | 71.45 | 2.81 |
| FG505801 | 58 | 78 | 2.8 |
| FG505806 | 58.9 | 77.3 | 3.31 |
| FG506103 | 67.6 | 87.68 | 3.31 |
| FG506202 | 62.66 | 85 | 2.8 |
| FG506603 | 66 | 90.8 | 4.81 |
| FG506604 | 66 | 80 | 2.8 |
| FG506801 | 68.1 | 83.5 | 2.794 |
| FG506802 | 68.6 | 84 | 3 |
| FG506802A | 68.6 | 84 | 3 |
| FG506905A | 69 | 87 | 3.4 |
| FG506907 | 69 | 87 | 3.4 |
| FG507103 | 71.2 | 84.5 | 2.81 |
| FG507901 | 79.9 | 98.15 | 3.31 |
Contact:
Phone:
Tel: +8651986399561
Email: ps@psbearings.com
Add: No.2 Hengxi Road, Niutang Town, Changzhou 213168, China

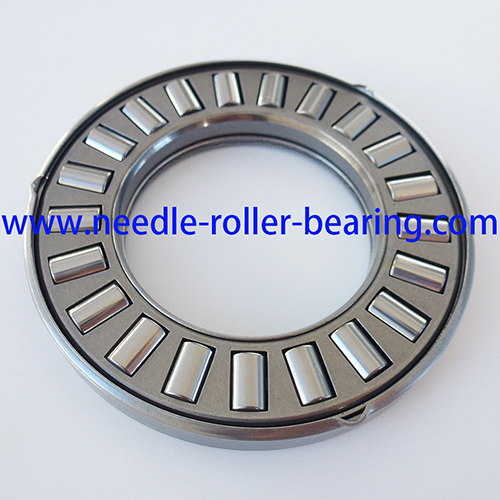

PS Needle Roller Bearing
